Power BI, Excel & GP – Starting from scratch

The first part of my series around Power BI, Excel & Dynamics GP begins with some of the basics, and a way to start learning Power Query, literally starting from scratch.

From my experience, an audience that is often overlooked are users who want to learn more or improve their skills but doesn’t know where to start, and everything they find starts at a point they don’t understand or can’t get to. For example, this post starts without getting into directly accessing data from SQL, which admittedly adds a level of complexity that some users have trouble getting past. Most of the rest of this series I will be accessing SQL data as that’s more efficient, but in this one, I’m using SmartList exports to make the learning more accessible.

This is post #1 of the series, aside from the introduction post here. In this post, I’m using the context of Dynamics GP to make a “real world” example with Accounts Payable data.

Overview

This post will cover setting up a SmartList favorite (to be able to re-export newer data later in the same format), export it to Excel, save it and then reference it as a data source. This isn’t about “export then manipulate into something”, it’s about export and read it as a quasi table/database to reference.

Using Power BI or Excel we can read those spreadsheests as a datasource, and as you export newer versions and save over the original file, you can refresh your notebook or PBI file and it updates with that new data. Obviously, reading GP data directly is “better” from an efficiency point of view, but it adds a layer of complexity around data access that isn’t relevant to the core concepts behind getting started with some core skills.

The scenario

Let’s say you’ve been asked to put together some metrics on Accounts Payable activity, how many invoices we process per month or quarter, how many payments we process etc. That will be the basis for my example.

Step 1 – SmartList favorites

First, I will start with “Payables Transactions”, which is an “out of the box” SmartList that comes with Dynamics GP. If you don’t have access to that SmartList, hopefully you have access to “Receivables Transactions” which has fairly similar columns and the concepts are similar between A/R and A/P.

  • Open SmartList and go to Purchasing > Payables Transactions
  • Click on either the SmartList object name itself or the * to get the default set of columns
  • Let’s filter the list first under Search [1]
    • Voided is equal to No
    • Document Status is not equal to Unposted
    • Posting Date is greater than *<pick a date that makes sense for your data>* [2]
  • Add the necessary columns:
    • Click on the Columns button on the toolbar
    • Click on Add. [3]
    • Here are the columns I’ve included: Voucher Number, Vendor ID, Vendor Name, Vendor Class, Vendor Status, Document Type, Document Number, Document Date, Posting Date (aka GL Posting Date), Document Amount.
    • Don’t worry about the order of the columns, that can be altered in Power Query.
  • Save as a Favorite:
    • Click on Favorites
    • Give the list a name. I called mine “PBI”.
    • Optional: Set Visible To
    • Click Add > Add Favorite
  • Export the list to Excel

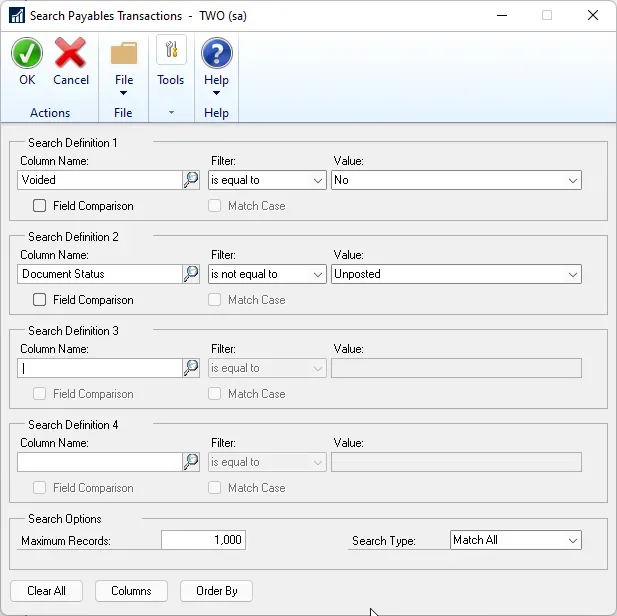

SmartList Search window

Footnotes (tips)

  • [1] to search for a column not in your displayed column list, in the lookup for columns, click at the top where it says “Selected Columns” and choose “All Columns”. The fields I note are not typically on the default SmartList set of columns but you will find them under All Columns. This particular SmartList contains most of the fields from the Vendor tables which helps us in this case to include some basic vendor information.
  • [2] Fabrikam data is awful and limited. There are fewer than 1000 records in my data and the dates don’t make a lot of sense compared to what normal production data may look like. In a real scenario, I might want to export data from the 2-3 years to compare year over year transaction volume. With Fabrikam, I exported everything. Remember to change the Maximum Records to more than 1000 if you will have a lot of records for your scenario.
  • [3] To select more than one column at a time, hold down the CTRL key as you click (for multi-select).

Step 2 – Saving the export

Now that the list has been exported, resist the temptation to format them or change them in any way! I will be using this as a data source, so I do not want to touch or change anything. The goal is to leave them as close to their raw format as possible so that each export is identical in layout. Power Query will be expecting the same filename, same path, same tab name in order to read “updated” versions of the file when you export newer information in the future.

If others will want to “refresh” this report, save it to a location those users have access to and save the spreadsheet into a folder with a meaningful name. The spreadsheet can be closed now, it’s just a data source, I will not be opening it again!

Step 3 – Power Query

Before I begin, here are the two layouts of Power Query side by side, in Power BI and Excel. Some things are in a different order on the Home toolbar and a few things are only in Power BI (AI Insights and a couple of items on other menu tabs).

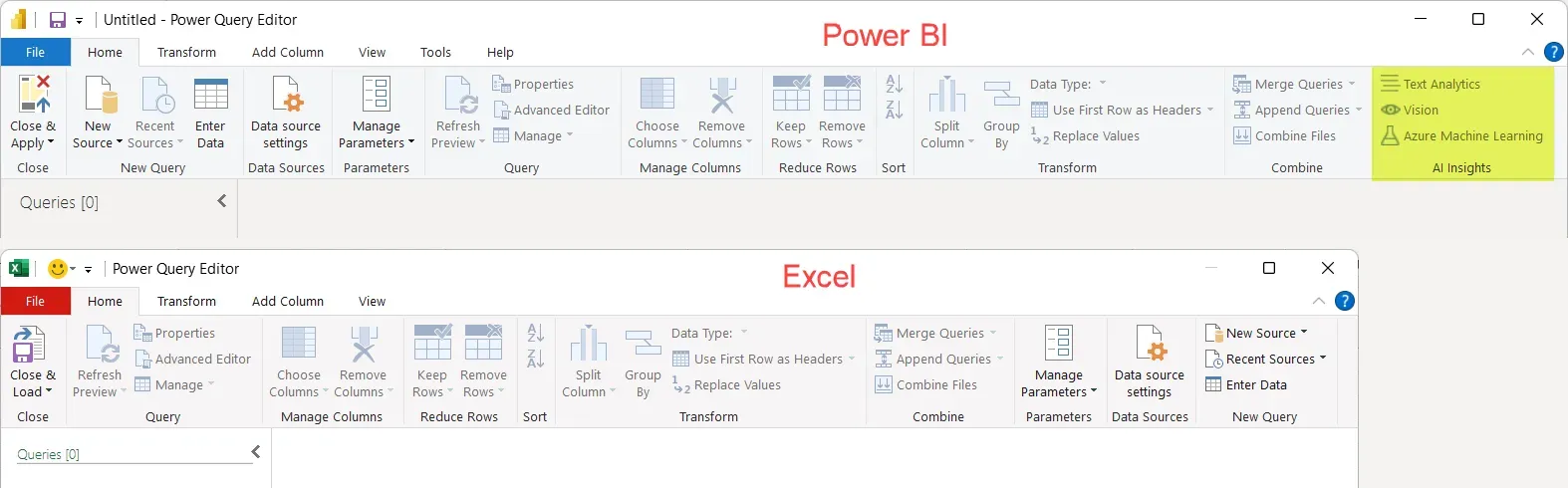

Power Query view in Power BI and Excel

Open whichever tool you want to start with and launch Power Query. For this post, I will use Excel. For what I describe, you technically do not need to open Power Query first, but for this example I will start by going into Power Query first. How to get into Power Query differs slightly between the two applications.

  • In Excel, go to the Data menu > Get Data > Launch Power Query Editor
  • In Power BI, click on Transform Data > Transform Data

Here are the steps to get the data into Power Query:

  • Look for the New Query section of the menu, click on New Source > File > Excel Workbook
  • Browse to the folder where you saved the spreadsheet and select that file.
  • The next window will have something like this picture below.

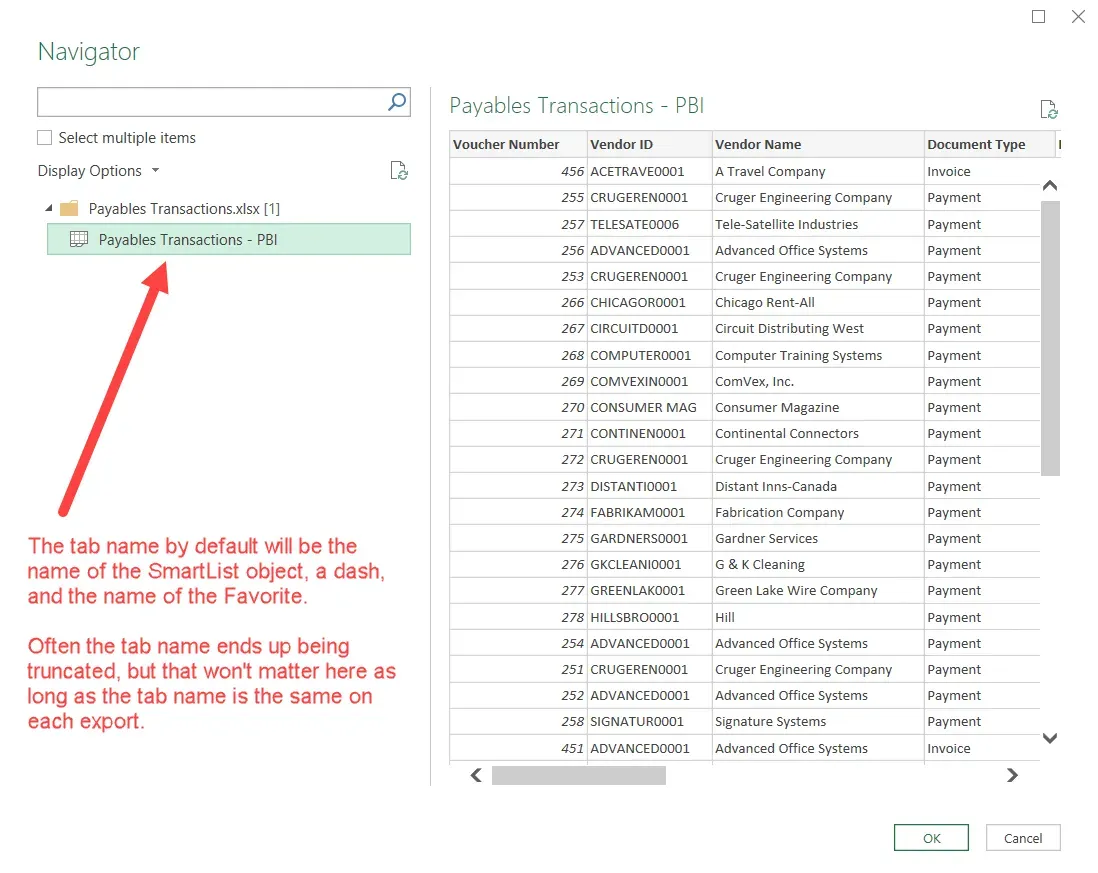

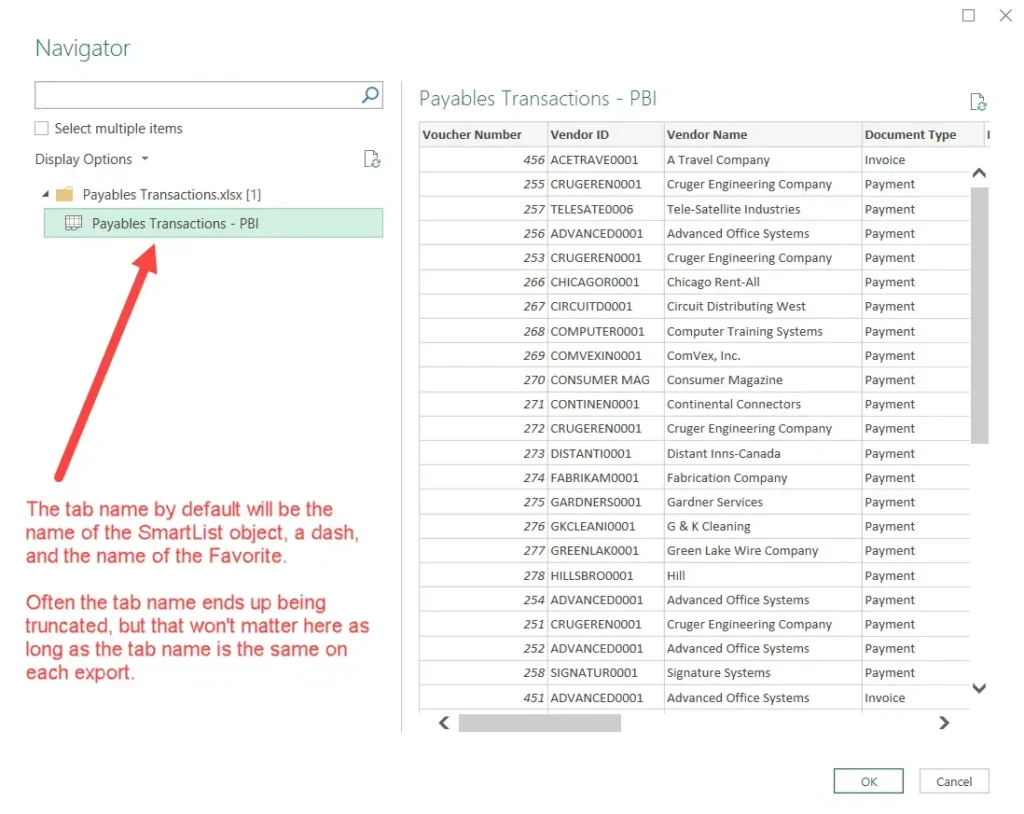

Tab selection window in Power Query

  • The tab name is the name when the data is exported from SmartList. Part of the tab name is the name of the favorite so the important part is to use the same favorite to export each time.
  • In this scenario, there should only be one tab in the workbook if it was saved right after exporting from SmartList. If you did this with another workbook that had multiple tabs and/or tabs with tables in them, it would show all of that with a slightly different icon for a tab of data vs. a table of data on a tab.
  • Click OK.

Power Query Basics

The way Power Query works is it tracks each step you perform on extracting or transforming the data, and they are listed on the right-hand side under the heading of Applied Steps. Each time you click Refresh, Power Query repeats those same steps in the same order so that you do not need to redo the steps manually every time. This is the beauty of using it for things where you do the same thing over and over, and it’s a lot easier than try to use VBA to program a macro!

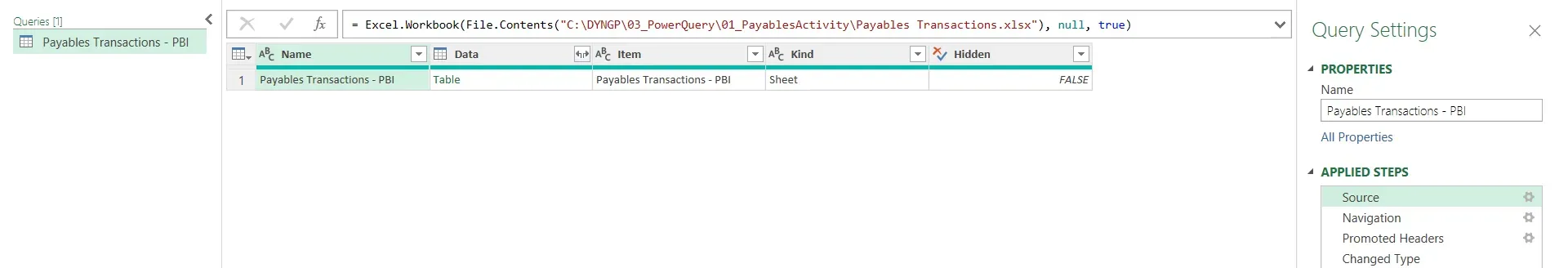

Don’t be afraid to click on a prior step to see what it did, or what the data looked like after that step, prior to any other step being performed. The first step in my example is “Source”. The other 3 steps were done automatically based on the type of data source I selected. Click on Source, for example. Mine looks like this:

  • In the “formula bar”, you can see the pathname. This is where you would update it if the source file needed to be moved somewhere else. (Two options for changing the file name or path is edit in the formula bar or click on the Gears icon beside the word Source under Applied Steps, and browse to the new file/location).
  • In the “table”, you will recognize certain parts of what it was reading from Excel such as the tab name.

The Navigation step is essentially the act of drilling into the “table” of data on the tab we selected. At that point, it drills into it without recognizing the column names, so you will see headers as Column1, 2, 3, etc.

Promoted Headers is a step to tell Excel that the first row of data are the column names. This is a common step you may add manually (in other scenarios) but done automatically for you because of the data source you chose.

Changed Type is where Power Query has looked at the data and guessed at what type of data is in each column. This may be right, or it may be incorrect. That is the first thing that I will review and in most cases, the first thing I do with a file no matter what the data source is.

Extract, Transform & Load (ETL)

What I’ve done so far is the very first part of ETL, extracting the data. The next step is to transform the data. This post is just scratching the surface of what you might want to do next, and in future posts I’ll go deeper into tips and tricks.

Review Data Types

  • Some changes are required. For the first time through this I’m going to delete the Changed Type step and redo it from scratch just to show how it is done. To delete a step, click on the X that appears when you hover over the step name. Now everything has ABC123 in the upper left-hand corner. That symbol means a data type of “any”. Even if the data “looks fine”, we want to set the data type to the right type for the data in the field so that PQ doesn’t guess wrong at some future date down the road.
  • Click on the Transform menu tab, and change the following:
    • Select all the following columns that are text and then choose Text in the Data Type menu on the toolbar.
      • Voucher Number, Vendor ID, Vendor Name, Document Type, Document Number, Document Status and Vendor Class.
      • TIP: you can multi-select columns by holding down the CTRL key as you select them.
      • The symbol on each should now be ABC.
    • On Document Date and Posting Date, set as Date.
    • On Current Trx Amount and Document Amount set as Currency.
  • When you are done, all of those changes were the same type of change, so there is only one “step” added and it’s called Changed Type.
  • TIP: if you are just changing the Data Type of one column, you can click on the symbol on the left corner of the column name to see the data types and choose the correct one.

Trim excess spaces

This step is specific to GP data because Dynamics GP text fields contain trailing spaces which are a pain to deal with in some cases, so trimming them is good practise. “Trim” means removing empty spaces at the beginning or end of a string.

  • Select all of the Text (ABC) columns in the source (the same columns we set to Text above)
  • On the Transform menu, click on Format then Trim.

Flip the document amount

This step is also somewhat specific to Dynamics GP. Dollar amounts in most tables are not based on the type of document, i.e., they are all displayed as positive amounts with a separate Document Type column. What this means is out of the box, you cannot sum a column of transactions to determine a balance, for instance. This step is walking through the type of formula to “flip the sign” on negative documents like payments, to show as a reduction in a balance in A/P (or A/R).

  • Create column for Document Amount based on type of document
  • Click on the Add Column menu tab.
  • Click on Custom Column.
  • Name the column. I called mine Doc Amount. The only thing you can’t do is give it the same name as another existing column.
  • The 3 possible types of transactions that should be “flipped” are Returns, Credit Notes and Payments. The basis for my formula is anything other than those 3 will be left positive.
  • The formula looks like this:

if [Document Type] = "Credit Note" or [Document Type] = "Payment" or [Document Type] = "Return"
then [Document Amount] * -1
else [Document Amount]

  • Click OK
  • The column will once again be an “ABC123” data type. Change the data type to Currency.

Add some date columns for easy filtering

If we were using Power BI for this, I would create a date table (there will be more to follow on that). In this case, I am using Excel, and while Pivot Tables will often automatically create date logic, some of these tricks are handy to know in Power Query. I’ll base my date formulas off the Posting Date field as I would want to analyze based on GL posting dates, not A/P document dates.

  • Click on Posting Date (the column).
  • Under the Add Column menu tab, click on Date, then Year. That creates a new column with just the year of the date field.
  • Repeat with Month (number) and Name of Month.

Rename the query (optional)

I tend to rename my queries before getting to far in the Excel side of things because the table it creates with the data is based on the name of the query, and that table name is referenced in many formulas. The query name should be as meaningful as possible for what the data contains. My preference when doing this in Excel is to name the query without spaces, but spaces are allowed. I’ve renamed mine “PayablesTrx”.

Back to Excel

At this point, click Close and Load on the toolbar to close out of Power Query. The query will load as a table in Excel (on separate tabs if you happened to have multiple queries to load). Now, notice that I forgot to say “remove the old Document Amount” column? To fix that, on the tab with the table, there should be a Table Design menu and a Query menu on your toolbar. Go to Query and choose Edit to return to Power Query Editor. (You can also go to launch PQ Editor the same way you did to start this section…).

  • Click on Document Amount (the original column name) and click on Remove Columns on the toolbar. Note: that is just adding another step the end of your Applied Steps now.
  • Click Close and Load to return back to Excel.

Testing the “Refresh”

The “prove it” moment (how does refreshing data work?) is easy to test. If this is your first time trying something like this, prove it to yourself by doing the following:

  • Close and save the workbook you’re working on, aka your “report template”. Often you cannot edit the “source” if the report using it is open so this will prevent a message about a file being opened somewhere else.
  • Go into your source file. Copy the file so you can put the data back, then delete some of your data. Save, close, then re-open the report template.
  • Click on the Data menu and Refresh All, and you will see your data table change based on whatever you touched in the source file.

This is just to show you that the same thing will occur if you export another version of the SmartList another day with more data in it, clicking refresh will update the workbook very easily without repeating manual steps to get your data ready for whatever analysis you want to do. As long as other users have access to where the source data is, they too can refresh if they want to after exporting a newer version of the SmartList and saving over the original file.

Final Notes

At this point, I’m not going to walk through too much more other than staging this in a couple of pivot tables for some analysis, just to show some basic way you could use this data. Pivot tables and charts are a common way to visualize or summarize the data in different ways.

Both of the examples are pretty bare bones but will give you an idea of some uses for this type of data. The Fabrikam data is quite odd so the charts themselves aren’t really representative of what a real business’ data might look like!

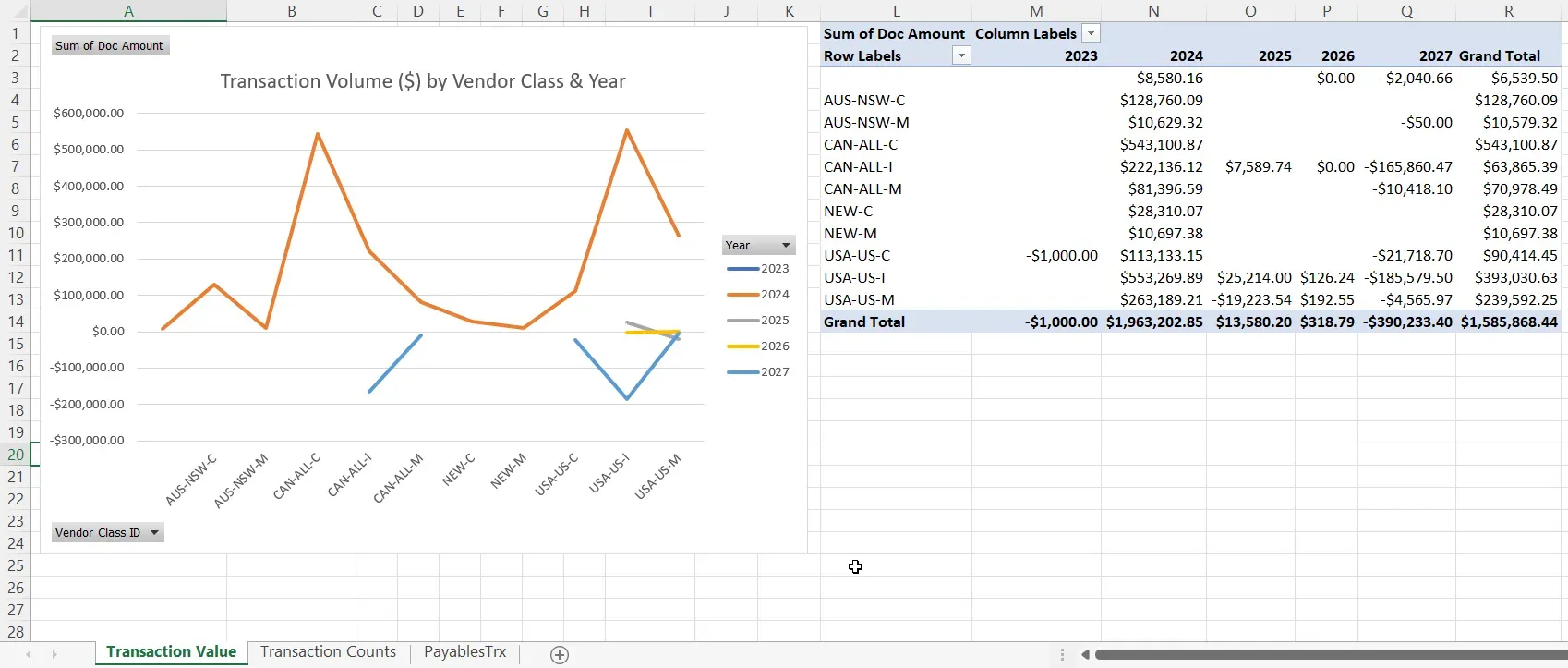

Example 1 – Line chart showing $ by Vendor Class & Year

This one is a Pivot Chart, line chart, analyzing transaction dollars by year and vendor class.

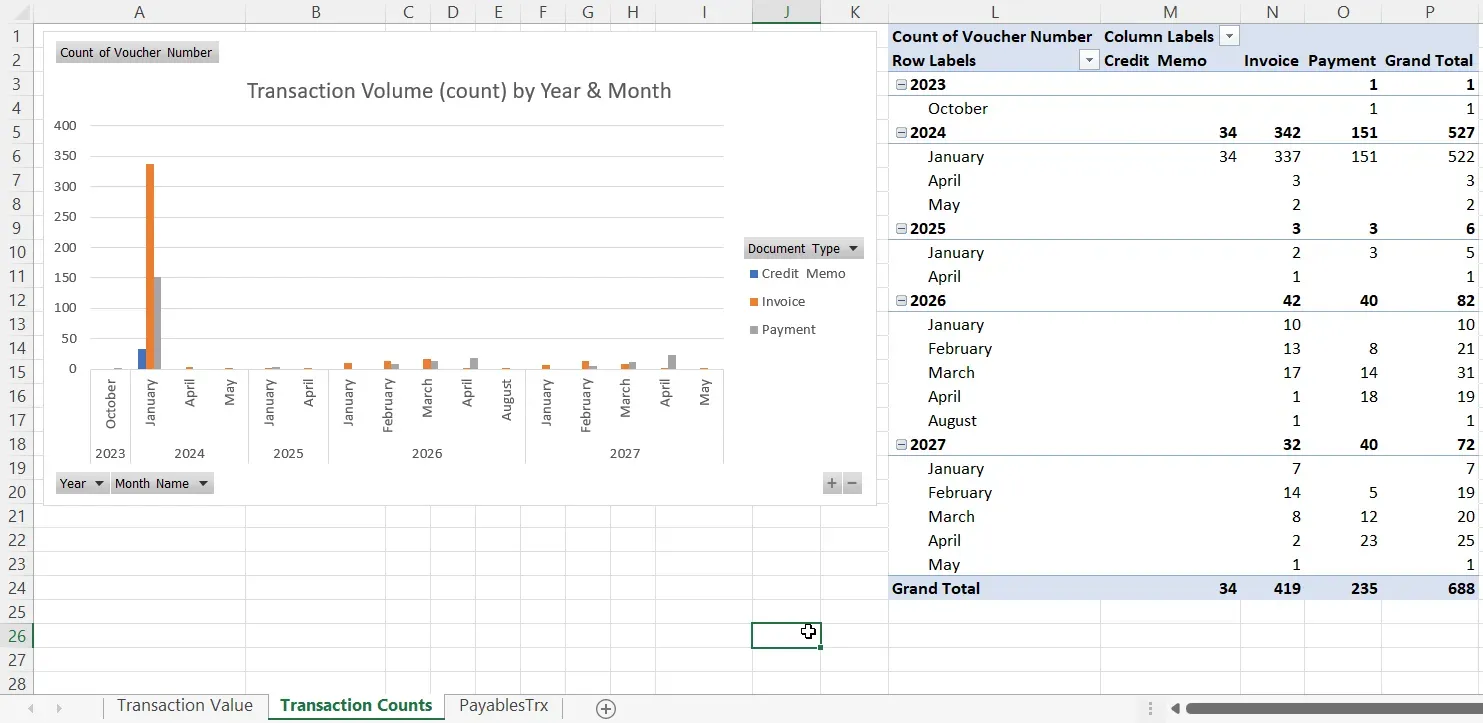

Example 2 – Column chart showing transaction count by Year, Month & Type

This one is a column chart analyzing transactions by document type and the count (number) of transactions.

If you want to analyze the file itself, here is my demo file. Refresh won’t work unless you export the same SmartList that I describe above and change the pathname etc., to the location where you saved it in your system, but this file will contain the data behind the charts above for you to see how I did some of this if it is helpful.

That’s it for this post. Hopefully if you got this far you found some of the basics useful as an introduction to Power Query. I’ve barely scratched the surface! Stay tuned for the next post in the series where I will talk about how to get the data out of GP via a connection to SQL.
